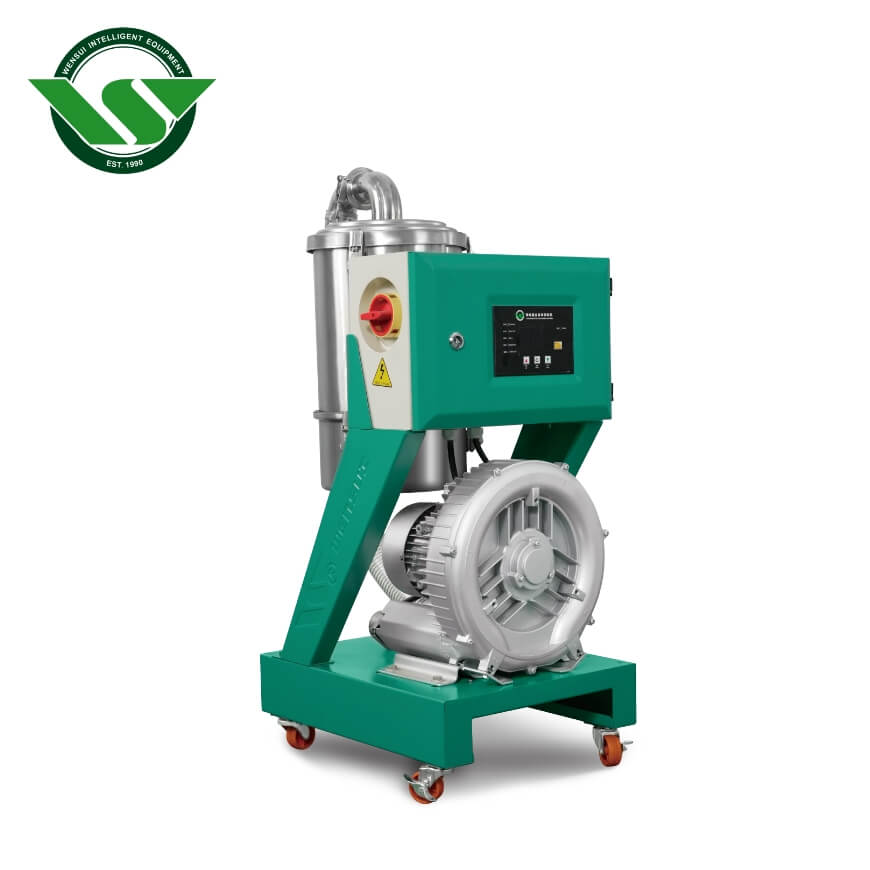

1:The main loader and its vacuum hopper are separated from each other for safety reasons and long-distance conveying.

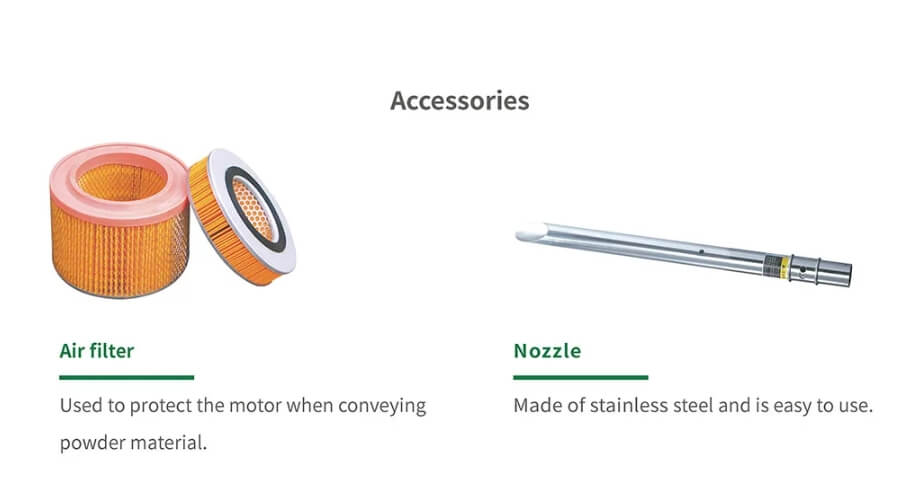

2:Easy-to-clean filter to remove dust.

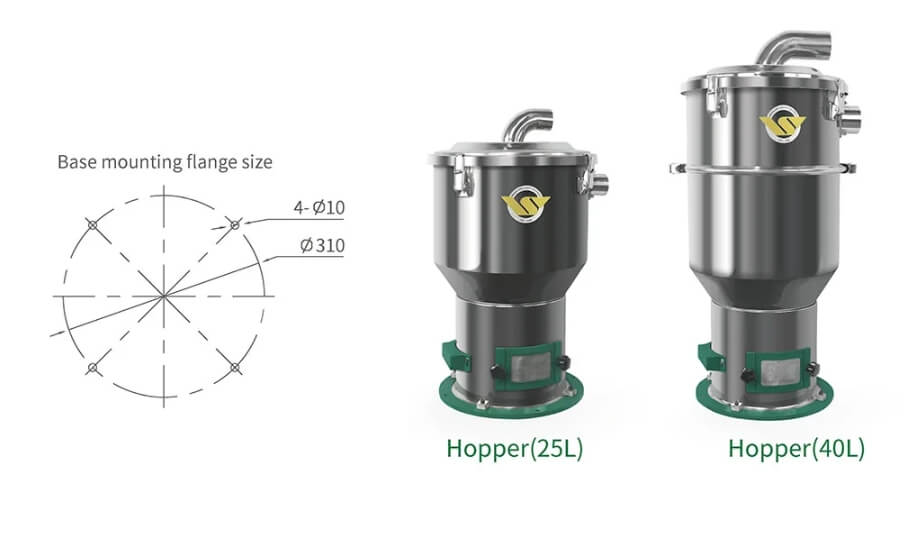

3:The hopper is made of stainless-steel.
4:Designed with alarms for overloading and material shortage.
5:Adopted a high-pressure induction blower for less noise and longer durability.
6:CE standard certified.
Performance characteristics
The host and hopper are designed separately, ensuring safety and simplicity.
Independent filtration device for easy removal of accumulated dust.
Stainless steel hopper.
Overload and shortage alarm.
Adopting an induction high-pressure fan, with low noise and long service life, it is suitable for conveying new and recycled materials.
This series of products has passed the European CE standard certification.

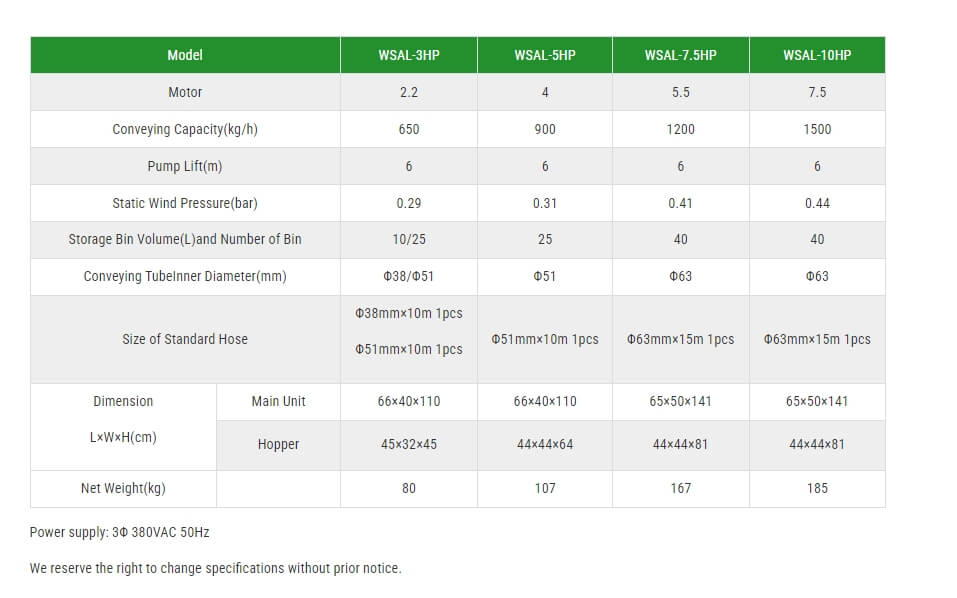

Technical Parameter
| Model(kw) | WSAL-3HP | WSAL-5HP | WSAL-7.5HP | WSAL-10HP | |
| Motor(kw) | 2.2 | 4 | 5.5 | 7.5 | |
| Conveying capacity (kg/h) | 650 | 900 | 1200 | 1500 | |
| Suction head (m) | 6 | 6 | 6 | 6 | |
| Static wind pressure (bar) | 0.29 | 0.31 | 0.41 | 0.44 | |
| Storage bucket capacity (L) | 10/25 | 25 | 40 | 40 | |
| Inner diameter of feeding pipe (mm) | Φ38/Φ51 | Φ51 | Φ63 | Φ63 | |
| Delivery pipe | Φ38mm×10m 1pcs，Φ51mm×10m 1pcs | Φ51mm×10m 1pcs | Φ63mm×15m 1pcs | Φ63mm×15m 1pcs | |
| Overall dimensions L×W×H (cm) | host | 66×40×110 | 66×40×110 | 65×50×141 | 65×50×141 |
| hopper | 45×32×45 | 44×44×64 | 44×44×81 | 44×44×81 | |
| Net weight (kg) | 80 | 107 | 167 | 185 | |
Power supply: 3 Φ 380VAC 50Hz;
The product specifications are subject to change without prior notice.
