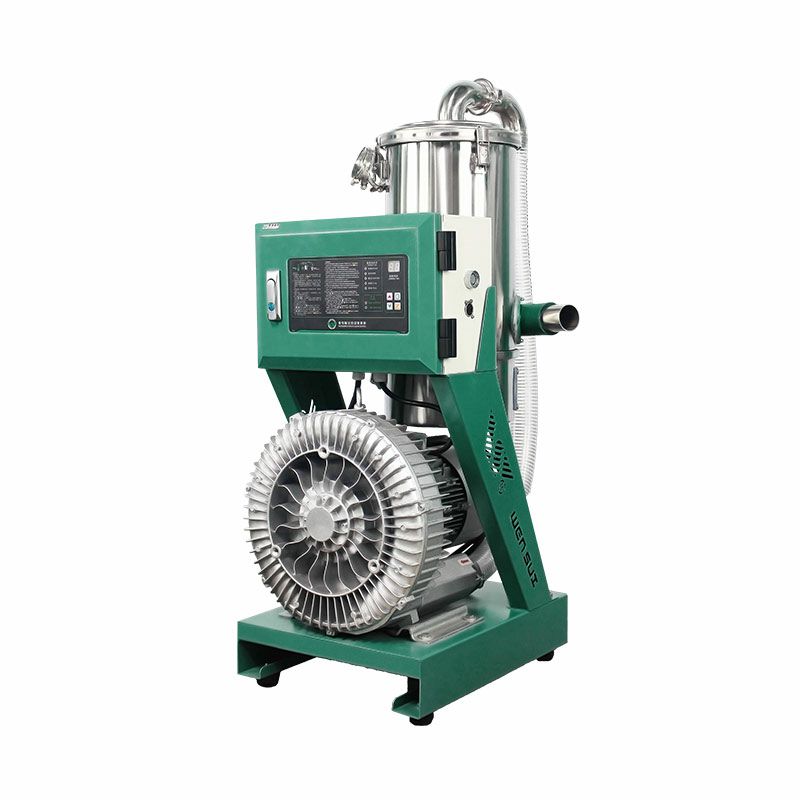

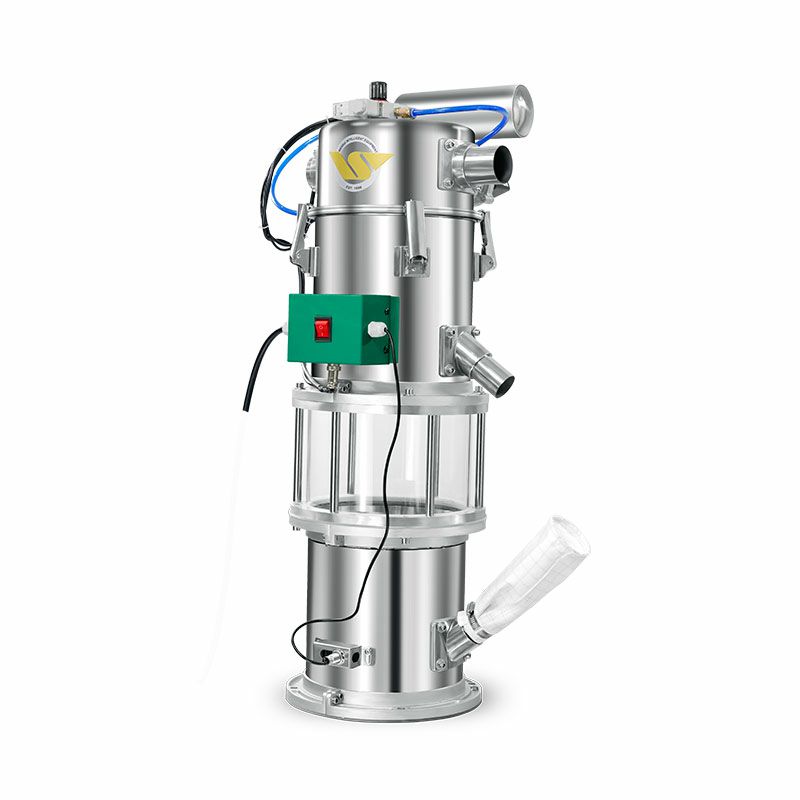

VPL Industrial Powder Auto loader

1:Controlled by a microprocessor and buttons

2:Adopted a high-pressure pump

3:large conveying capacity( one to one and up to one to four)

4:dust separator and dust collecting bin

5:blowback valve to clean the hopper automatically

6:with an indicator light

Performance characteristics

Adopting microcomputer control and button operation, the operation interface is simple and easy to understand.

The host adopts a high negative pressure fan, which is small in size, low in noise, and flexible in installation and use.

The raw material transportation capacity is large, which can achieve the feeding function from one-to-one (standard configuration) to one-to-four (optional configuration).

The separated filter and dust collection bucket design are easy to clean and maintain.

Equipped with automatic spray cleaning function in the hopper

Display of working status and fault problem indicator light.

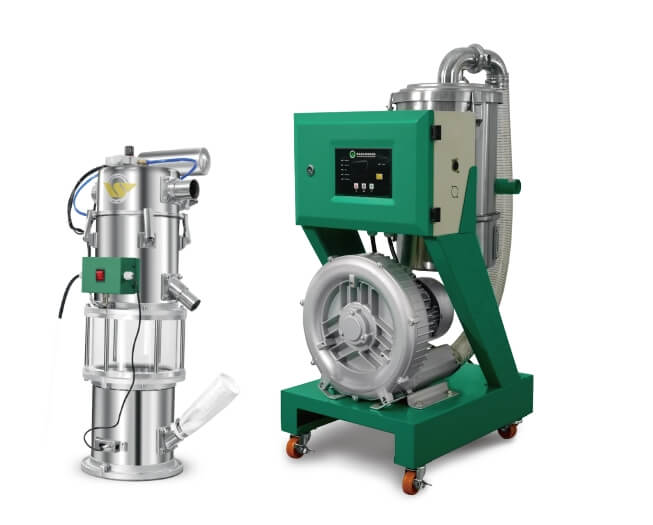

VPL Powder Autoloader (2).png VPL Powder Autoloader (3).png

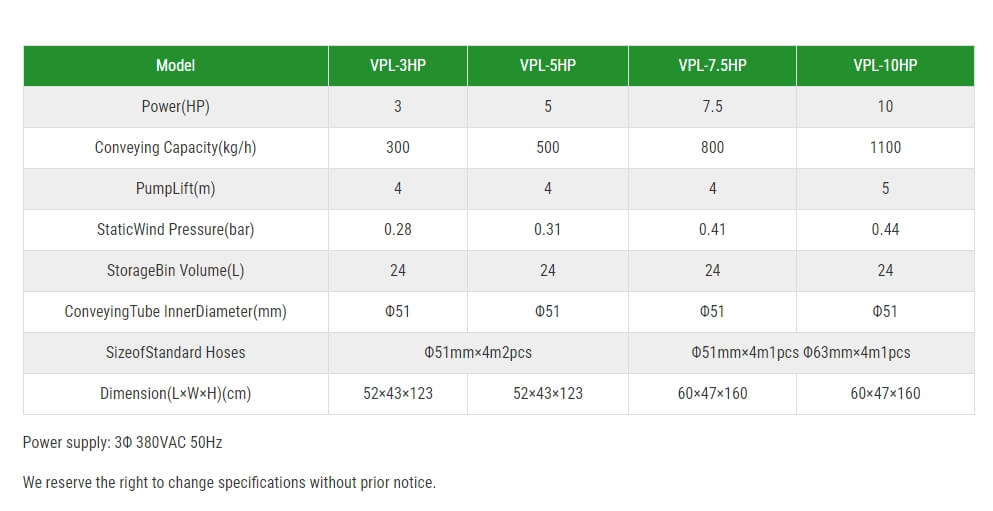

Technical Parameter

Model	VPL-3HP	VPL-5HP	VPL-7.5HP	VPL-10HP
Power (HP)	3	5	7.5	10
Conveying capacity (kg/h)	300	500	800	1100
Suction head (m)	4	4	5	5
Static wind pressure (bar)	0.28	0.31	0.41	0.44
Storage bucket capacity (L)	10	10	25	25
Inner diameter of feeding pipe (mm)	Φ38	Φ38	Φ51	Φ51
Delivery pipe	Φ38mm×4m 2pcs		Φ51mm×4m 2pcs
Overall dimensions L×W×H(cm)	52×43×123	52×43×123	60×47×160	60×47×160

Power supply: 3 Φ 380VAC 50Hz;

The product specifications are subject to change without prior notice.
