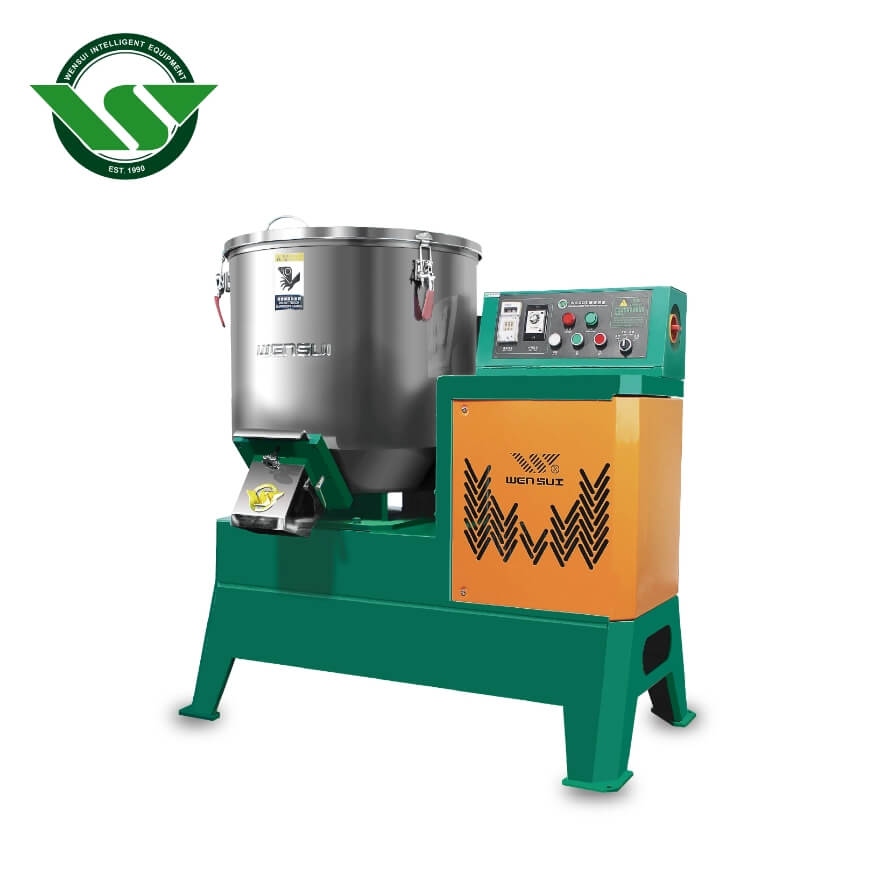

Mixing & Dosing

1:Temperaturer and timer

2:Double-layered insulations.

3:Stainless-steel design

4:Designed with overloading protection.

Performance characteristics
Integrating temperature and time control, convenient for setting various parameters.
Sealed chamber mixing and double layer insulation device.
Stainless steel inner liner and outer shell for easy cleaning.
Motor overload protection.

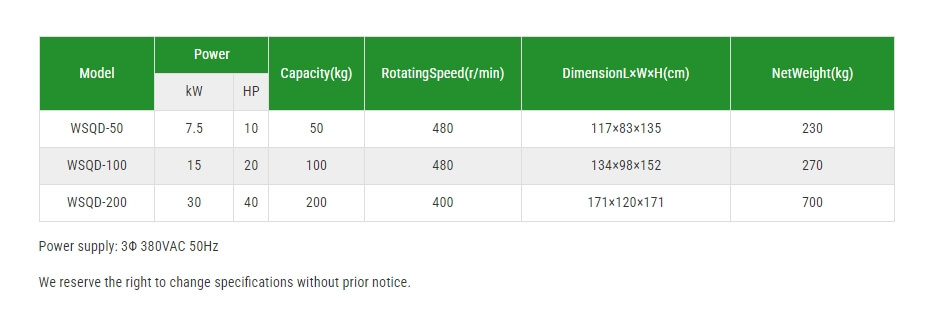

Technical Parameter
Model Power Capacity（kg） Speed(r/min) Overall dimensions L×W×H(cm) Net Weight(kg)
kW HP
WSQD-50 7.5 10 50 480 117×83×135 230
WSQD-100 15 20 100 480 134×98×152 270
WSQD-200 30 40 200 400 171×120×171 700
Power supply: 3 Φ 380VAC 50Hz;
The product specifications are subject to change without prior notice.
